Specifications:
|
Product Name
|

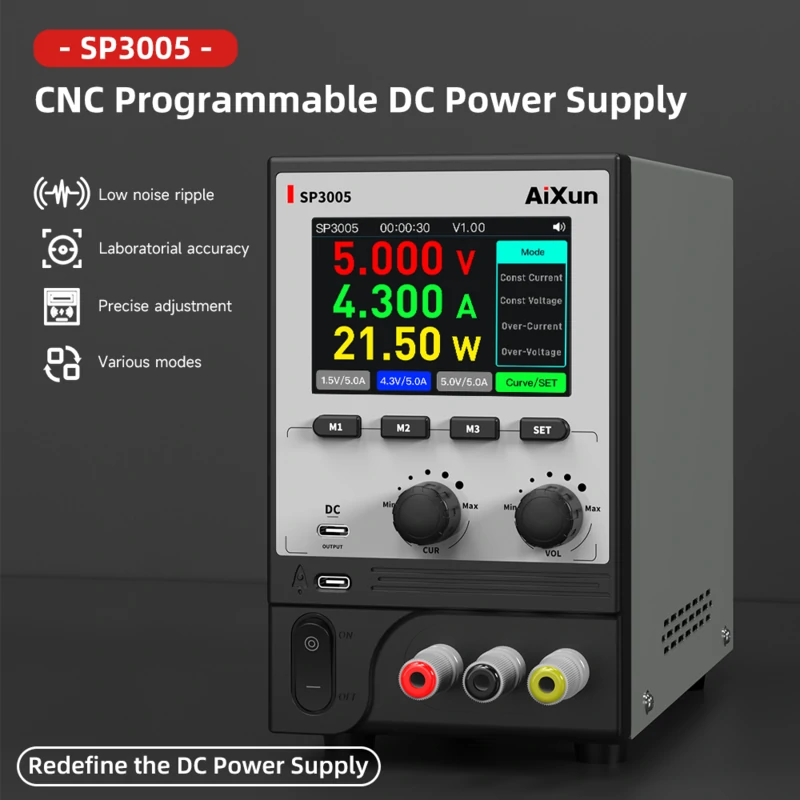

CNC Programmable DC Power Supply
|
|
Brand
|
AiXun
|
|
Model
|
SP3005
|
|
Input voltage
|
230V
|
|
Communication
|
USB
|
|
Display type
|
3.5 inch IPS Screen
|
|
Material
|
Sheet metal + plastic
|
|
Rated power
|
150W (150W square transformer)
|
|
Voltage/current range
|
0-30V/0-5A adjustable
|
|
Load regulation
|
Voltage: ≤ 0.01%+2mV/Current: ≤0.1%+5mA
|
|
Linear regulation
|
Voltage: ≤ 0.01%+3mv/ Current: ≤ 0.1%+3mA
|
|
Ripple (20hz-20M)
|
Voltage: ≤ 2mV rms/ Current: ≤ 3mA rms (ripple 1MV)
|
|
Working mode
|
CC/CV modes; OV/OC protection
|
|
Net weight
|
4.6kg
|
|
Dimensions
|
200*100*170mm
|
Features:

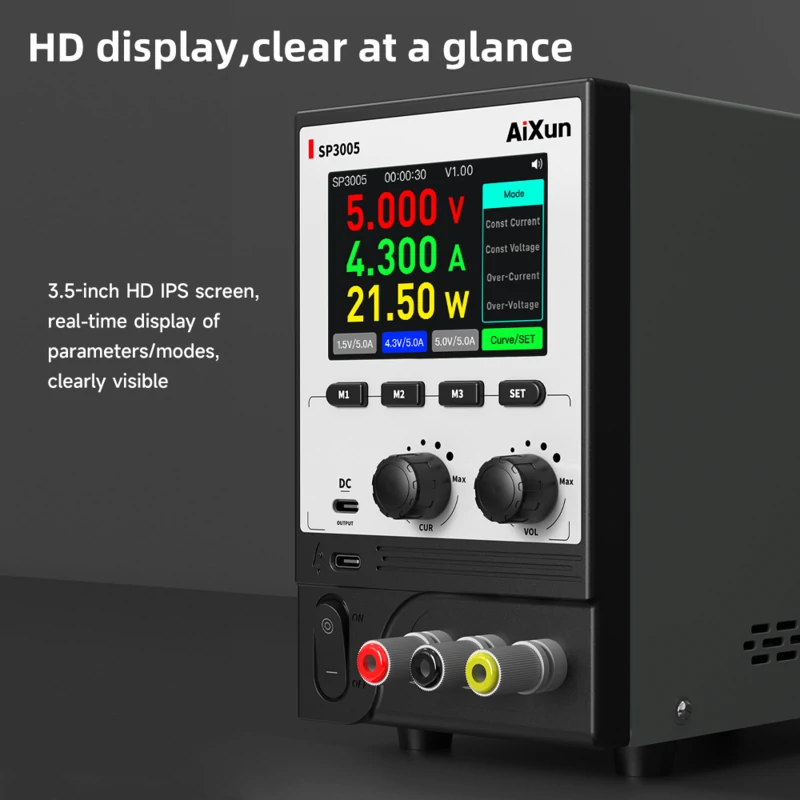

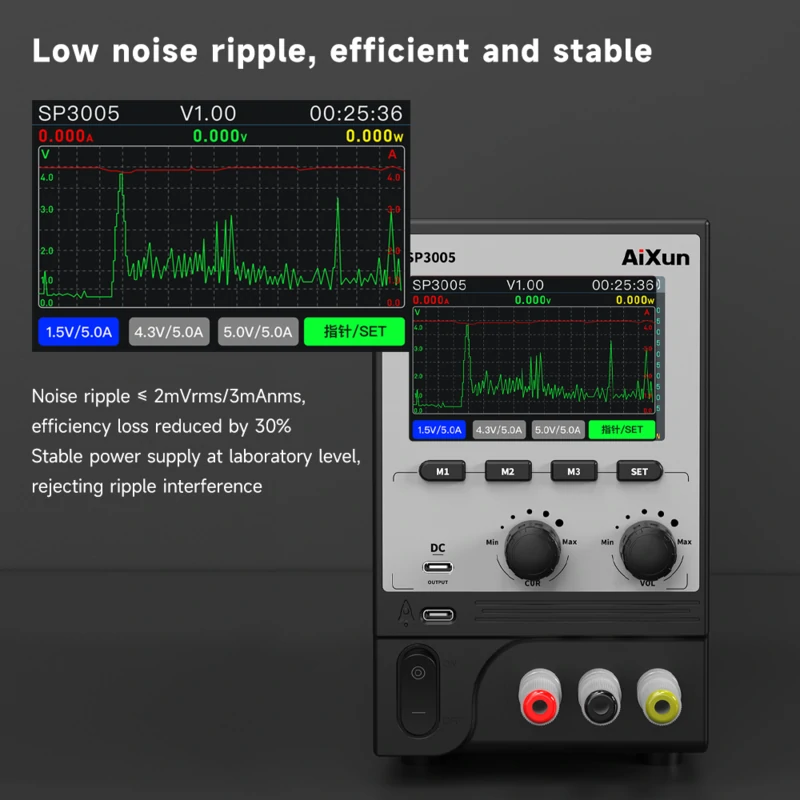

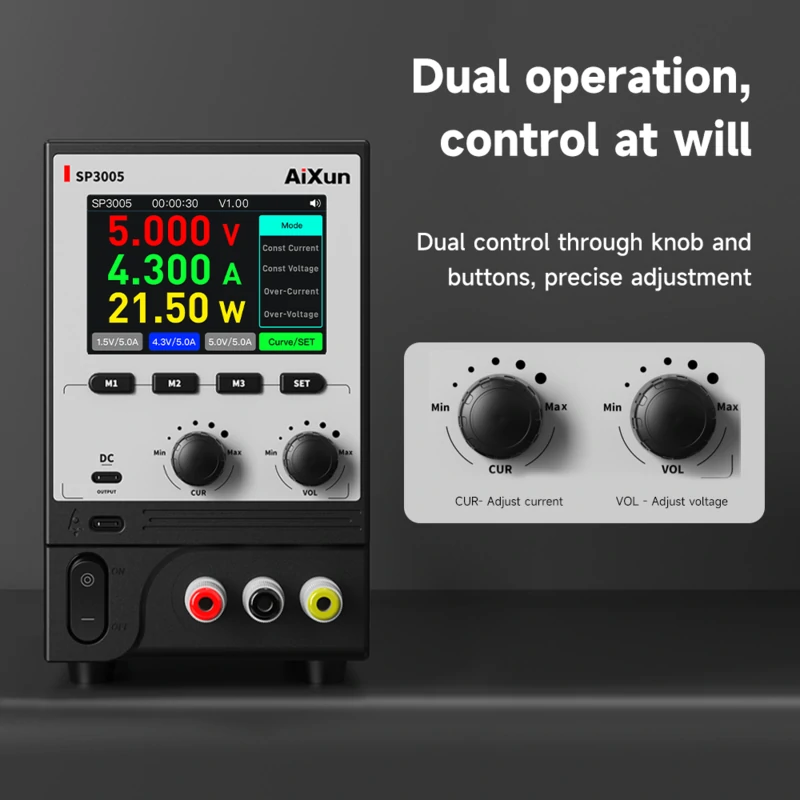

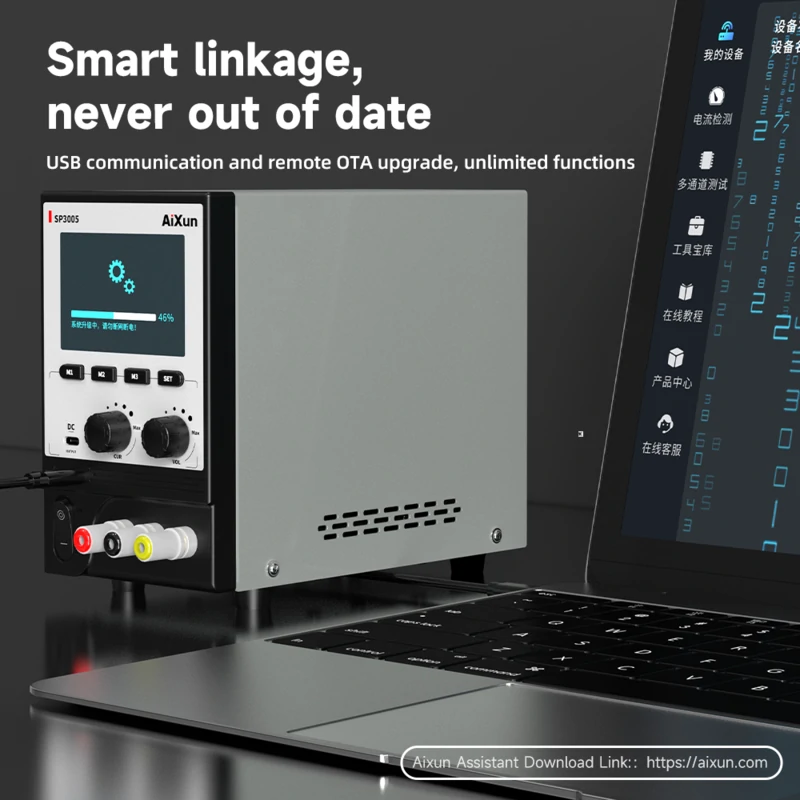

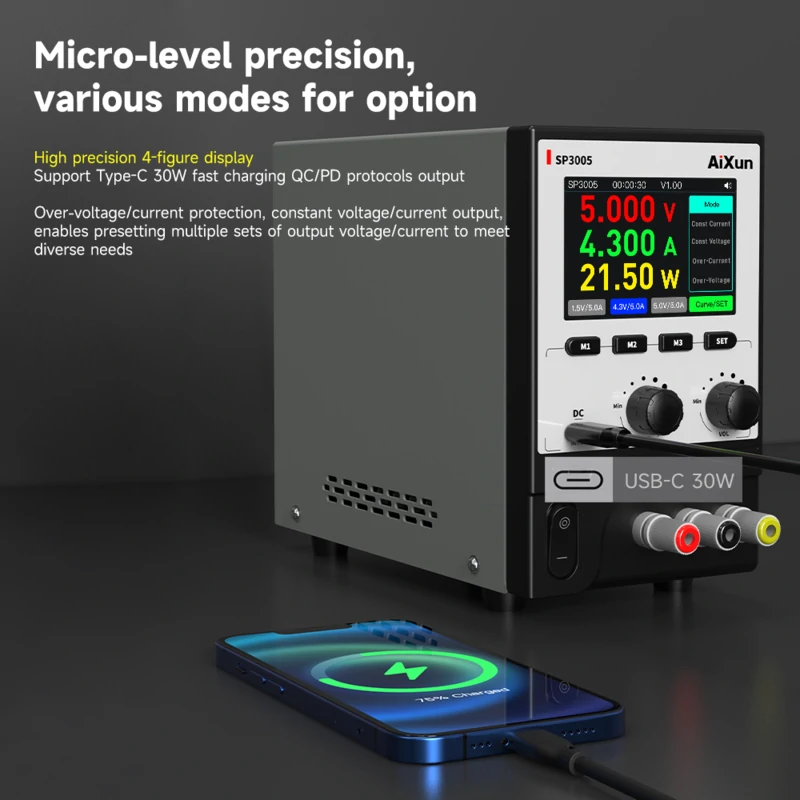

SP3005 CNC Programmable DC Power Supply — Redefining precision power delivery. Designed with ultra-low noise ripple (≤2mVrms/3mArms) and 30% lower efficiency loss, it ensures high stability and minimal interference for demanding applications. Offers micro-level voltage/current adjustment down to three decimal places, supported by high precision 4-figure display. Featuring dual control modes (knob + buttons), it provides intuitive and accurate operation. Built-in CV/CC modes, OVP/OCP protection, and multi-group preset outputs meet diverse testing and development needs. Stay future-ready with USB communication and OTA remote upgrade, allowing unlimited function expansion. The Type-C 30W fast charging output supports QC/PD protocols. A 3.5-inch HD IPS screen displays parameters and modes in real time for clear visibility. Ideal for audio equipment development, maintenance and debugging, electronics lab experiments, and low-noise sensor power supply, SP3005 is the perfect choice for precision-focused professionals.

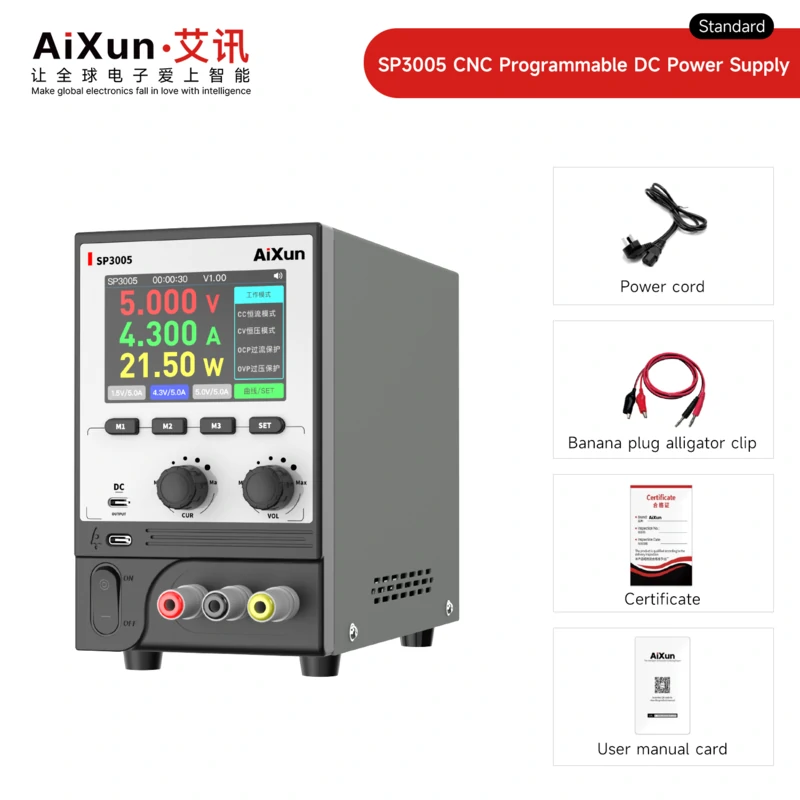

List of Packing:
SP3005 Power Supply Host x 1
Power cord x 1
Banana plug alligator clip x 1
Certificate x 1
User manual card x 1
