Specifications:
|
Product Name
|
Chip Grinding Machine
|
|
Brand
|
AiXun
|
|
Max No-Load Speed
|
24000r/min
|
|
Input Voltage
|
DC 12V
|
|
Dimensions
|
204*162*179mm
|
|
Workbench Size
|
197*93mm
|
|
Application
|

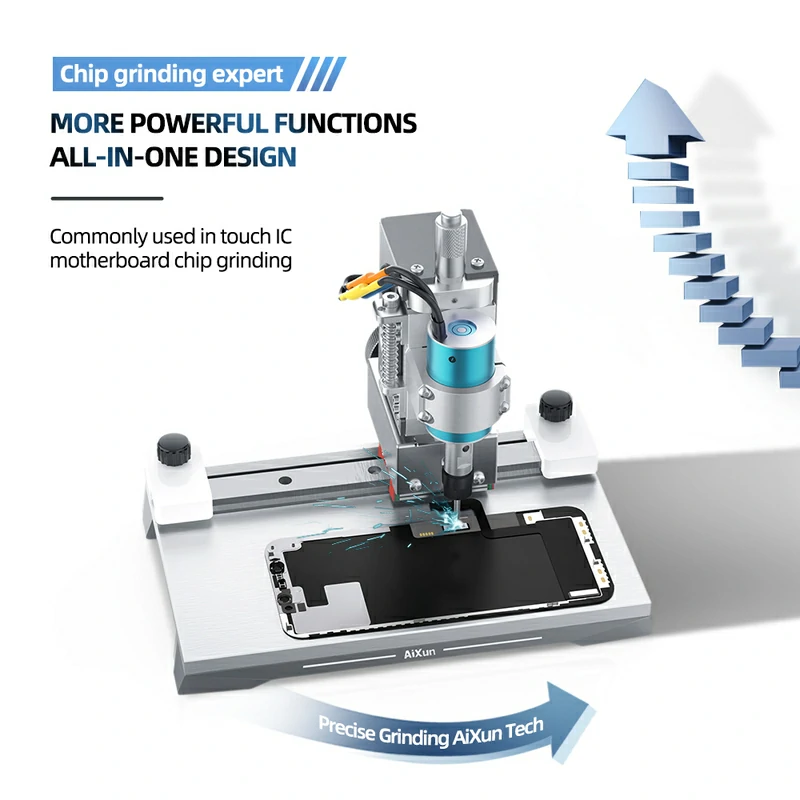

Touch IC, motherboard chip grinding
|
Features:

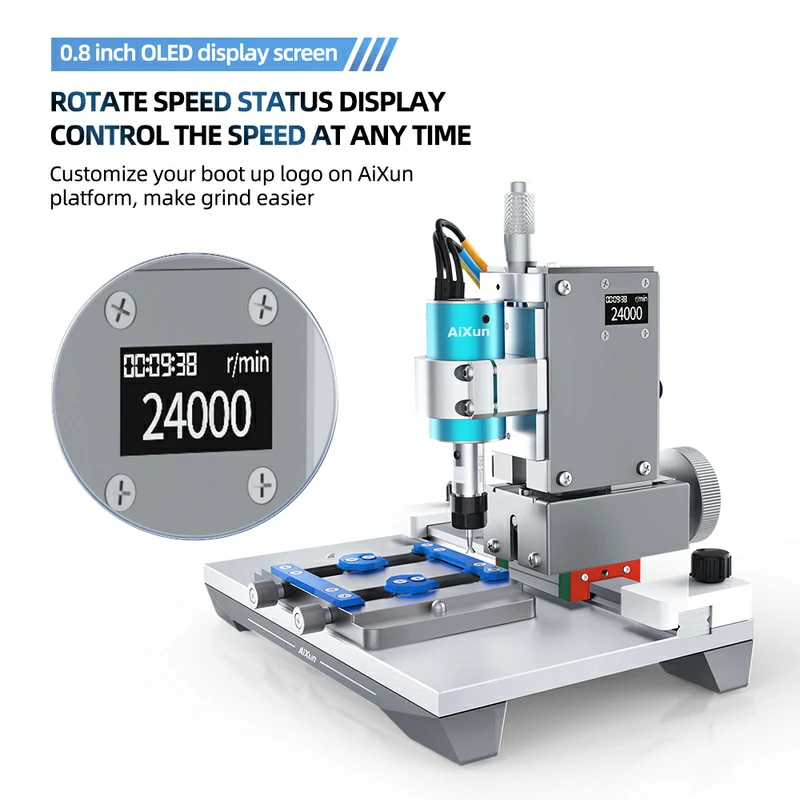

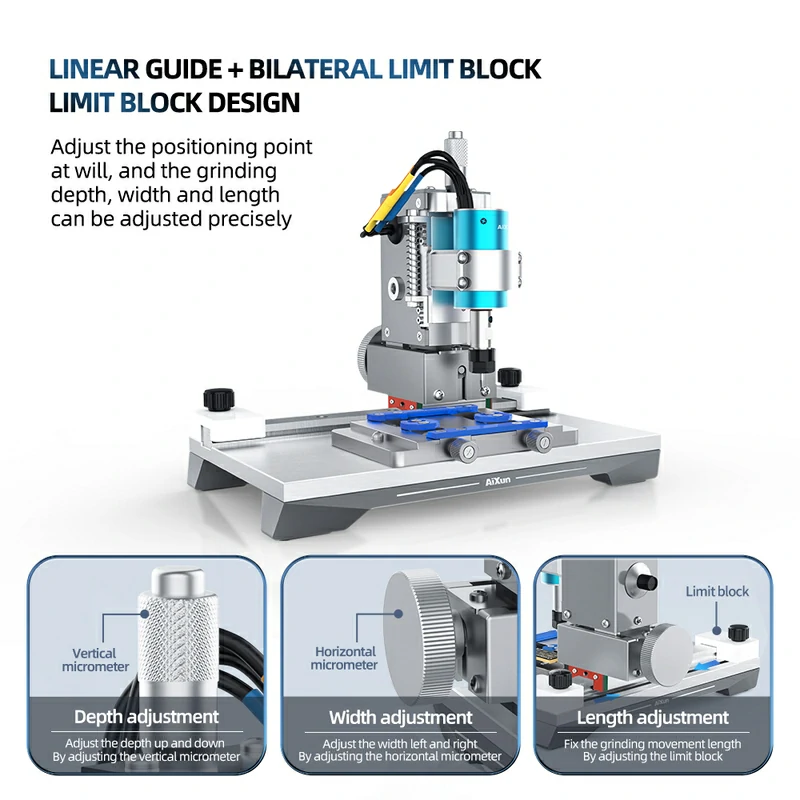

AiXun second generation chip grinding machine is a specialist in touch IC and motherboard chip grinding. It features A4 paper size, compact and precise appearance, 24000r/min maximum no-load speed which ensures higher load intensity and working efficiency, 0.8 inch OLED display screen which is benefit for you to control the rotate speed at any time, customized aviation high-power inner rotor high-speed brushless motor, make grinding easier, linear guide and bilateral limit block design which guarantees precise adjustment of grinding depth, width and length. It is packaged with a motherboard grinding universal fixture and emery grinding heads in 2.5/4.0mm, by rotating the fixture block at multi-angle, users can easily grind all kinds of special-shaped motherboard, touch IC, NAND and chips.
List of Packing:
1x Chip grinding machine with universal fixture
1x 2.5*30mm emery grinding head
1x 4.0*30mm emery grinding head
1x Power cord
Packing Details:
1pc/box, 10pcs/carton
Box dimension:
Carton dimension:
