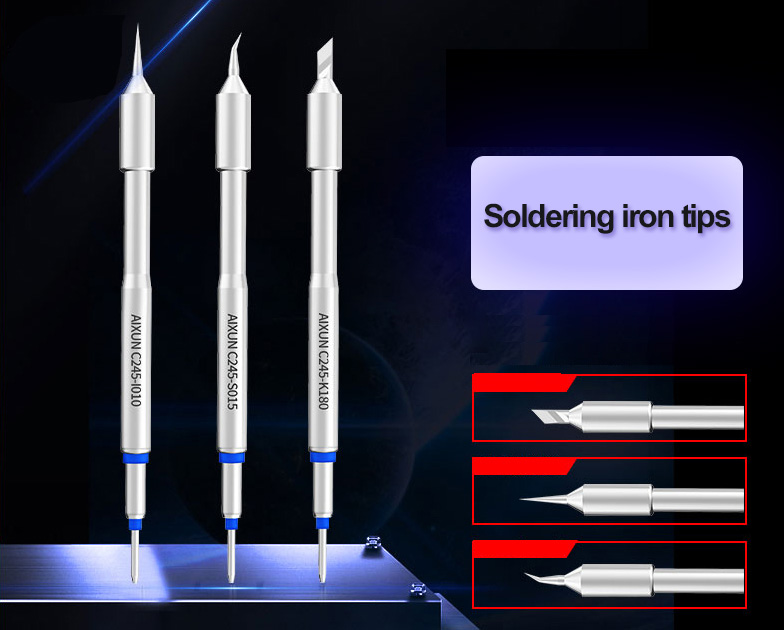

Soldering iron tips are an essential part of any soldering station, and the type of tip you choose will depend on the job you are doing. There are a wide variety of soldering iron tips available, each designed to meet specific needs. Here is a look at some of the most common types of soldering iron tips.
Flat Tip: The flat tip is the most common type of soldering iron tip. It is used for general soldering tasks and is ideal for soldering components with flat surfaces. It has a flat, chisel-like shape and is available in a variety of sizes to accommodate different projects.
Conical Tip: The conical tip is a more specialized version of the flat tip. It is designed for soldering components with curved surfaces, such as wires and connectors. It has a cone-shaped tip that allows for better precision and accuracy when soldering.
Chisel Tip: The chisel tip is similar to the flat tip, but it has a more pointed shape. It is designed for soldering components with intricate details, such as printed circuit boards. The chisel tip is available in a variety of sizes to accommodate different projects.
Spade Tip: The spade tip is used for soldering components with large, flat surfaces. It has a wide, flat shape that allows for better heat transfer and faster soldering.
Needle Tip: The needle tip is a specialized version of the chisel tip. It is designed for soldering components with very small details, such as microprocessors. It has a long, thin shape that allows for better accuracy and precision when soldering.
These are just a few of the many types of soldering iron tips available. Depending on the job you are doing, you may need to use a combination of different tips to get the best results. Be sure to read the instructions for your soldering iron to ensure that you are using the correct tip for the job.
