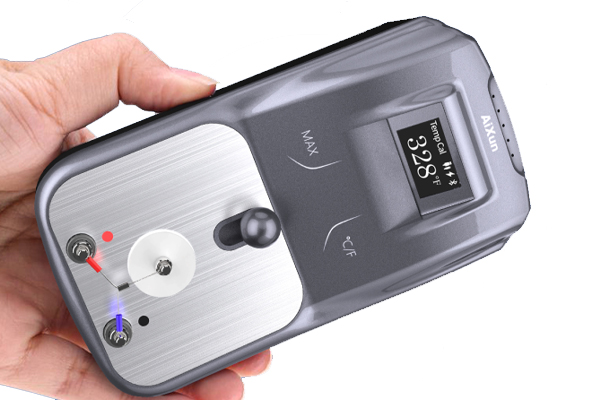

AiXun DT01 intelligent digital thermometer is a new intelligent thermometer upgraded by the AiXun team. It solves the difficult problem of soldering enthusiasts and soldering engineers testing the real-time temperature of soldering iron tips - and the temperature measurement is more worry-free and easier to use. convenient.
Let's take a look at the 6 functions of the DT01 intelligent digital thermometer:
1. OLED high-definition display: intelligent digital display, clear and intuitive, real-time temperature measurement to ensure welding process.
2. One machine can be used for multiple tests: soldering iron temperature, air gun, surface, liquid temperature, the left side is equipped with a K-type socket (the temperature sensing line can be replaced), with a probe, it can measure the temperature of the surface, air gun, and liquid, (Note: The two dare to ask methods cannot be used at the same time! Please remove one of them when using.)
3. The temperature measurement is fast and accurate! The measurement is accurate, efficient and stable, the temperature curve is recorded and played back, and the temperature of the soldering iron tip can be detected in real time. The thermometer can measure the temperature of the soldering iron head at any angle according to the shape of the soldering iron head; and the soldering iron thermometer has the function of recording the highest temperature of the soldering iron head. When the power switch is turned on, the highest temperature record of the soldering iron head is displayed.
4. Temperature correction: use Type-c or Bluetooth connection to achieve temperature correction with TD420.
5. Powerful AI function: Axiomtek independently researches and develops smart chips, which saves worry and effort for smart maintenance!
a. Battery detection: automatic reminder when the battery is too low.
b. Detection of temperature-sensing components: automatically report when the device is damaged.
c. Working status recognition: automatic shutdown when idle, when the thermometer is not in use for 3 minutes, the power will automatically shut down;
6. Digital thermometer upgrade: connect the data cable to the computer, open the aixun platform, and upgrade in the tool upgrade interface.
Instructions for use of DT01 intelligent digital thermometer:
1. Place the temperature sensing wire at the terminal and press the push button to move the end with the gasket down, as shown in the figure to place the temperature sensing wire
2. Turn on the power, check the display, when the display shows the ambient temperature, the thermometer can be used normally
3. Place the soldering iron on the temperature sensing point to measure the temperature, place the soldering iron on the temperature sensing point, and the display screen can display the temperature of the soldering iron in real time.
