Different Types of Soldering Iron Tips

Soldering iron tips are essential components of the soldering process. They are the part of the soldering iron that heats up and melts the solder, allowing you to join two pieces of metal together. There are many different types of soldering iron tips available, each designed for a specific purpose. Understanding the differences between the various types of tips can help you choose the right one for your project.

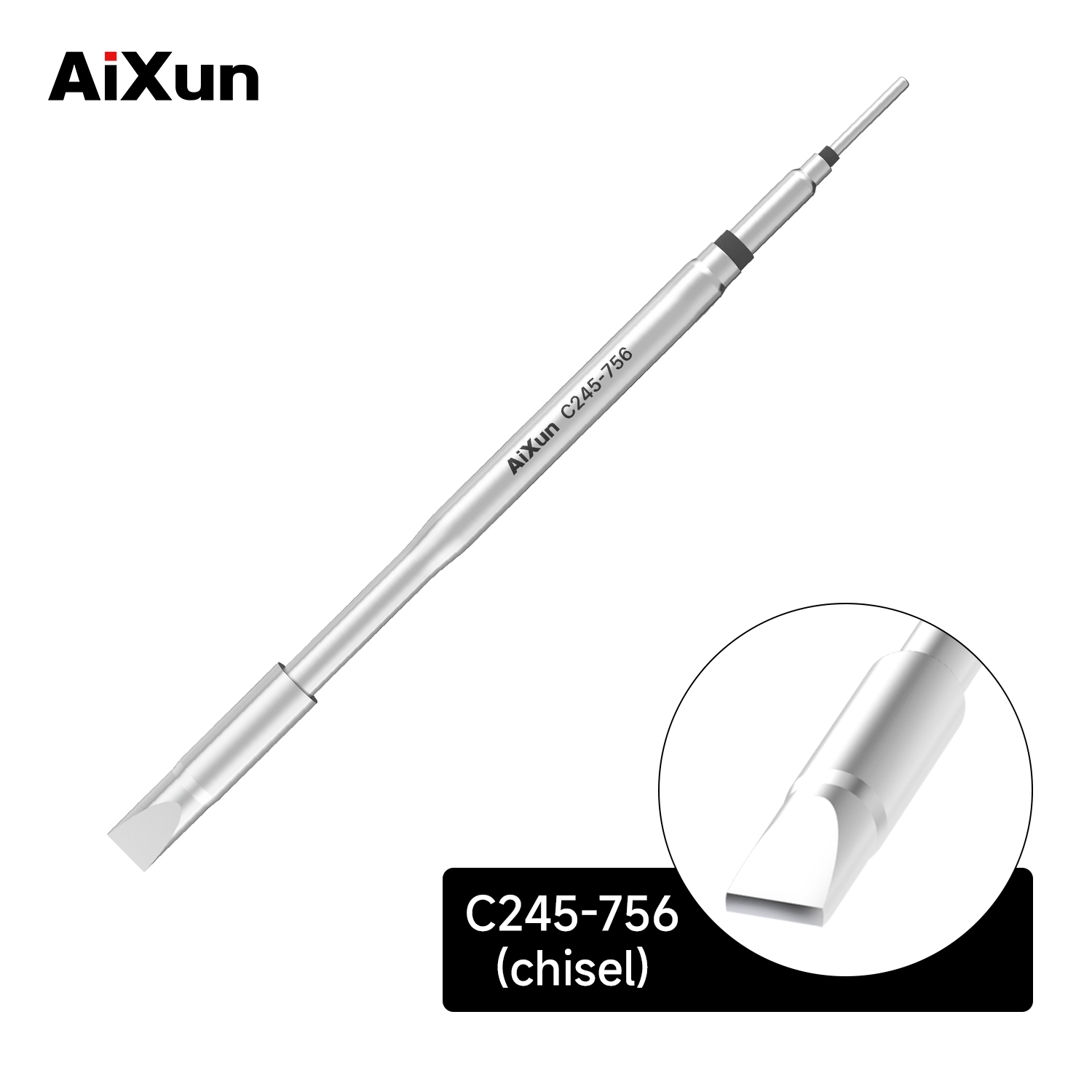

1. chisel tip for the most common

The most common type of tip is chisel tip. This is a flat tip with a sharp edge, allowing it to spread the heat evenly and make precise joints. Chisel tips are the most versatile and can be used for general soldering, as well as small surface mount components.

2. Conical tip for precision soldering

The conical tip is similar to the chisel tip, but has a rounded end instead of a sharp edge. This design allows for more precise control when soldering, but is also more difficult to use. This type of tip is best suited for soldering tiny components, such as surface mount chips.

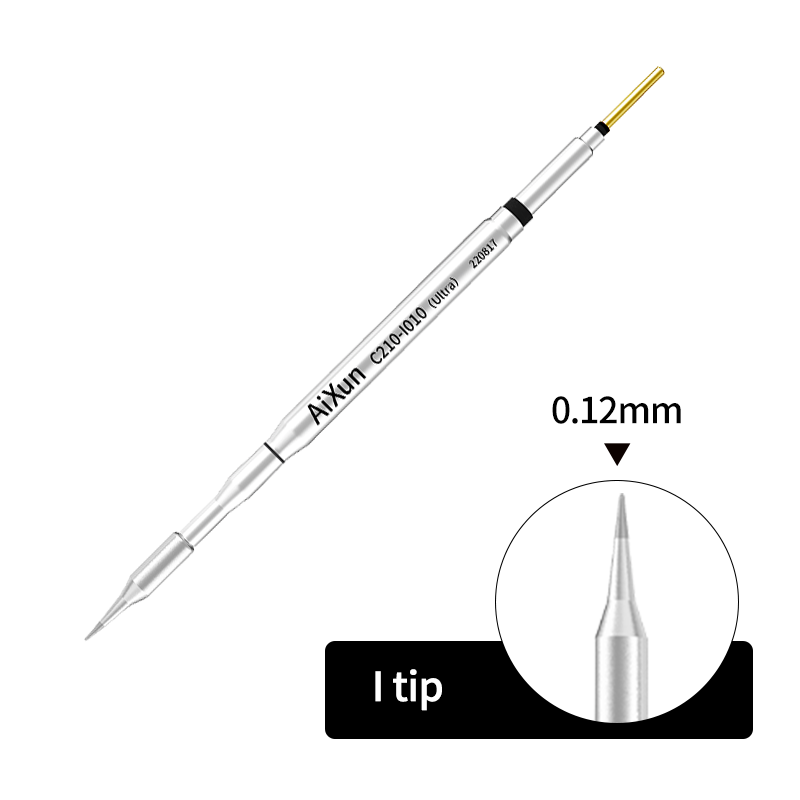

3. Needle tip for tiny component task

The needle tip is the smallest and most precise type of tip available. It has a very small diameter and is designed for soldering tiny components, such as wires and transistors. This type of tip is ideal for detailed soldering jobs, such as circuit board repairs.

4. Bevel tip for larger components soldering work

The bevel tip is designed for soldering larger components, such as wires and electrical connections. The tip has a tapered shape that allows for more even heat distribution and can be used to join wires of different sizes.

5. Solder sucker tip for removing excess solder

The solder sucker tip is designed for removing excess solder from a joint. It has a narrow, pointed tip that can be used to draw out the molten solder, leaving a clean joint.

Finally, the soldering iron tip cleaner is an essential accessory for extending the life of your soldering iron tip. This device has a fine abrasive surface that can be used to remove oxidation and other buildup from the tip, keeping it clean and functioning properly.

When it comes to soldering, the right solder tip will make all the difference. AiXun stock a wide range of tips and cartridges designed to improve the efficiency of your project. Please contact us to see if we can assist you with your soldering, desoldering, and reworking requirements.
