Soldering is an essential skill for anyone who wants to work with circuit boards. It is a great way to join two components together, but it can also be dangerous if not done properly. In order to solder circuit board without damaging the components, it is important to understand the basics of soldering and the right tools for the job.
Can soldering damage circuit board?
When it comes to circuit boards, soldering is an essential part of the construction process. Without it, the circuit board cannot function properly. However, it is possible for soldering to damage circuit boards if it is not done correctly.
Soldering involves the use of heat to join two pieces of metal together. If the temperature is too high, the heat can cause the solder to break down and damage the components on the circuit board. This can result in the board becoming inoperable or malfunctioning.
In addition, if the solder is not applied correctly, it can cause a short circuit which can damage the board. The solder should be applied evenly and carefully so that it does not bridge two different components on the board. If this occurs, it can cause an electric current to flow in the wrong direction, which can cause a short circuit and damage the board.
Finally, soldering can cause physical damage to the board if it is not done properly. For example, if the solder is not applied in the right place, it could cause the board to be scratched or cracked. This can cause the board to malfunction or become inoperable.
What equipment is needed for soldering?

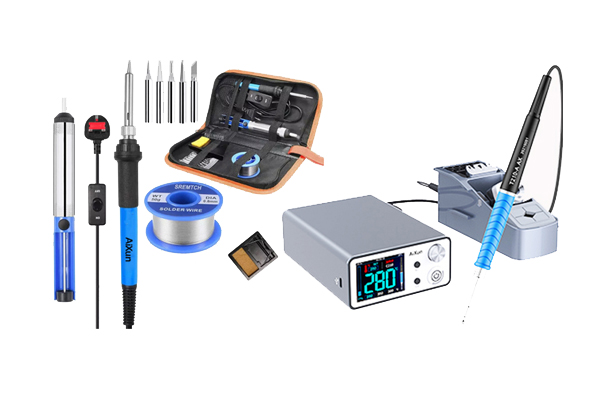

Precision PCB soldering requires a few specific pieces of equipment. Here are the list for essential equipment for soldering:
1. soldering iron
2. soldering station
3. Flux
4. Solder
You can view the previous article What Soldering Equipment You Need for PCB Soldering to learn more about the details.
How to solder?
1. Prepare the board for soldering
Before beginning, it is important to inspect the board for any damage or contaminants. Any damaged components should be replaced and the board should be cleaned with isopropyl alcohol to remove any residues.
2. Select the right soldering iron
Low wattage soldering irons are generally the best choice for circuit boards as they provide just enough heat to melt the solder without causing damage to the components.
3. Prepare the solder
Solder should be cut into small pieces, with the size depending on the task at hand. The solder should then be placed onto the soldering iron and heated until it melts.
4. Apply the solder
It is important to make sure that the solder is applied evenly and that it creates a strong connection. Too much solder can cause a short or other problems, while too little solder may not provide a strong enough connection.
5. Inspection
Once the solder has cooled, it is important to inspect the connection. Any problems should be addressed immediately before proceeding.
Inclusion
Soldering a circuit board without damaging components is not difficult, but it does require some practice and familiarity with the process. Taking the time to understand the basics of soldering and selecting the right tools can help ensure that the job is done correctly.

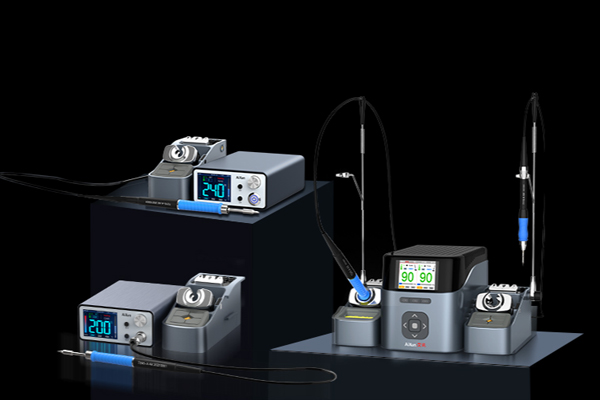

About AiXun soldering station series
AiXun soldering station is a revolutionary soldering device that provides users with a high-performance, cost-effective, and safe soldering station. It is designed to meet the needs of both the professional and hobbyist user alike. With its easy-to-use interface and adjustable temperature settings, the AiXun soldering station is the perfect tool for a variety of soldering tasks. Don’t hesitate to request quote for expanding your business right now!
