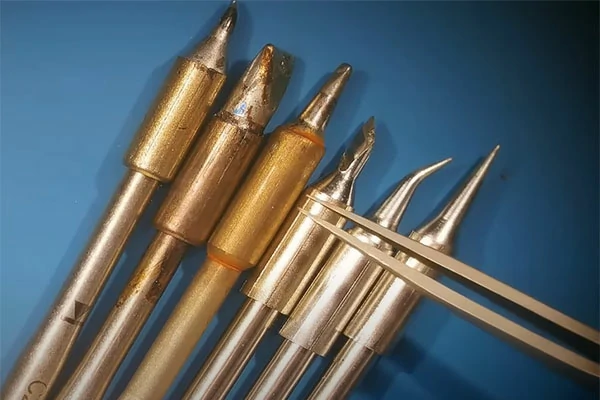

Soldering on circuit boards demands precision, finesse, and the right tools. One of the most critical components in your soldering toolkit is the soldering iron tip. Choosing the right tip can make all the difference in your ability to create clean, reliable solder joints without damaging sensitive components. In this article, we'll explore the various types of soldering iron tips and help you determine which one is best suited for your circuit board soldering needs.
1. Conical Tip: The Precision Workhorse
Conical tips feature a pointed, cone-shaped tip, and they are an excellent choice for intricate soldering tasks. Their fine point allows for precise soldering on small components and in tight spaces, making them ideal for soldering individual through-hole components, surface-mount devices (SMD), and fine-pitch components.
2. Chisel Tip: Versatile and Reliable
Chisel tips are known for their flat, broad surface with a slightly tapered edge. These versatile tips can handle a wide range of soldering tasks, making them suitable for both through-hole and surface-mount soldering on circuit boards. The broad surface area provides effective heat transfer, making them great for soldering larger components or traces.
3. Fine Point Tip: For Delicate Work
Fine point tips have an incredibly fine, needle-like tip, which is perfect for extremely delicate soldering tasks. They excel at soldering tiny SMDs, jumper wires, and fine-pitch components, offering precision and access to tight spaces that are crucial in circuit board work.
4. Bevel Tip: Balancing Precision and Heat Transfer
Bevel tips have a flat, angled edge that combines some of the characteristics of both conical and chisel tips. They offer a larger surface area for good heat transfer while also providing some precision for soldering in confined spaces. This versatility makes them a valuable choice for various circuit board soldering tasks.
5. Knife Tip: Quick and Efficient Heat Transfer
Knife tips feature a flat, wide shape with a sharp edge, which is ideal for soldering larger surface-mount components and connectors. They excel in situations where you need to transfer heat quickly and efficiently, making them a valuable addition to your soldering tip collection.
6. Hoof Tip: A Blend of Precision and Heat Transfer
Hoof tips, shaped like a hoof or a teardrop, offer a balanced combination of precision and heat transfer capabilities. They are versatile and can handle a range of soldering tasks on circuit boards, providing good control and efficient heat transfer.
When selecting a soldering iron tip for circuit board work, consider the size and type of components you'll be soldering, the complexity of the soldering job, and your personal soldering style. Having a variety of tips on hand allows you to match the specific requirements of each soldering task, ensuring you achieve the best results. Remember to keep your soldering iron tip clean and well-tinned to maintain optimal performance and solder joint quality.
