Essential Tools For PCB soldering

PCB soldering also known as printed circuit board soldering, is the process of joining electronic components to a PCB using solder. Soldering is a fundamental technique in electronics assembly where components such as resistors, capacitors, integrated circuits, and other electronic parts are attached to the PCB to create functioning electronic circuits.



During the PCB soldering process, a soldering iron is used to heat the solder, a metal alloy with a low melting point. The molten solder is then applied to the joint between the component lead and the copper pad on the PCB. As the solder cools and solidifies, it forms a strong electrical and mechanical connection between the component and the board.

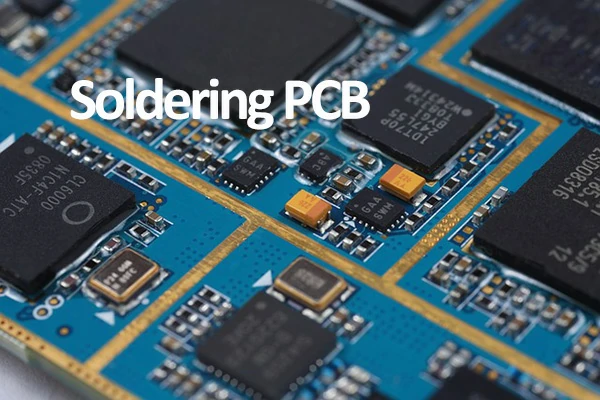

pcb soldering



What tools are needed for PCB soldering?



When it comes to soldering printed circuit boards (PCBs), having the right tools is essential for success. Here are some must-have tools for PCB soldering:



Soldering Iron: A good quality soldering iron with adjustable temperature settings is key for precise and efficient soldering on PCBs.



Solder Wire: High-quality solder wire with a rosin core is essential for creating strong and reliable solder joints on PCBs.



Soldering Station: A soldering station with temperature control and stability will provide you with the control needed for working on delicate PCBs.



Soldering Flux: Flux helps clean and prepare the surfaces for soldering, ensuring a strong bond between the components and the PCB.





Desoldering Pump or Wick: These tools are handy for removing excess solder or correcting mistakes during the soldering process.



Helping Hands: A tool with adjustable arms and clips to hold the PCB and components in place while soldering can be very helpful.



Tweezers: Fine-tipped tweezers are essential for handling small components and placing them accurately on the PCB.



PCB Holder: A PCB holder or vise will keep your board steady and secure while you work on it, providing stability and precision.



These essential tools will help you achieve clean, professional soldering results when working on PCBs. If you need any recommendations or have any questions, feel free to contact AiXun.
