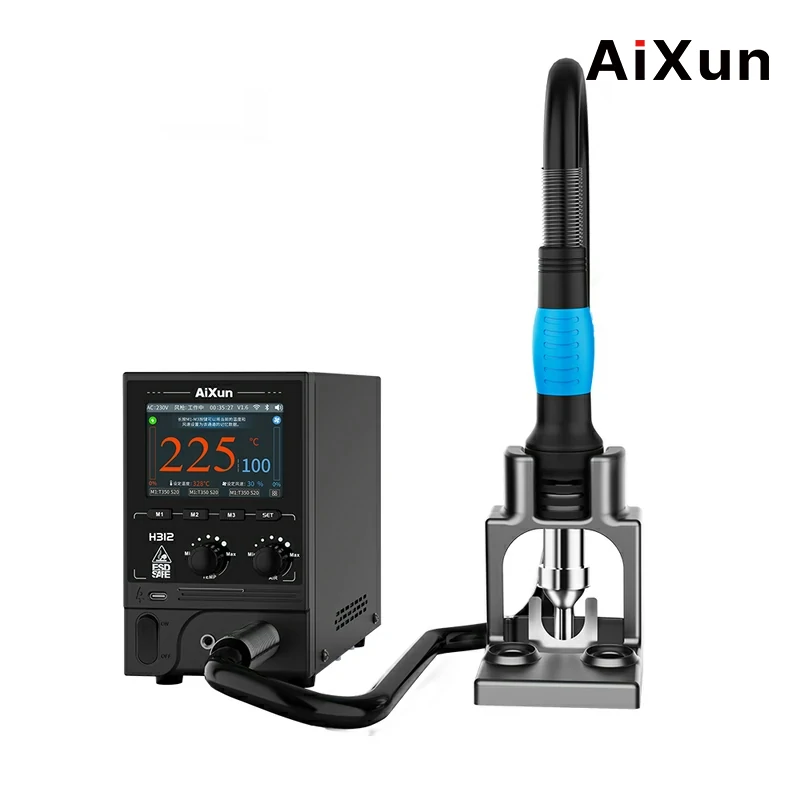

H312 Smart Hot Air Rework Station 1400W High Power Intelligent Rework Station

Market Price: US$ 196 /PC

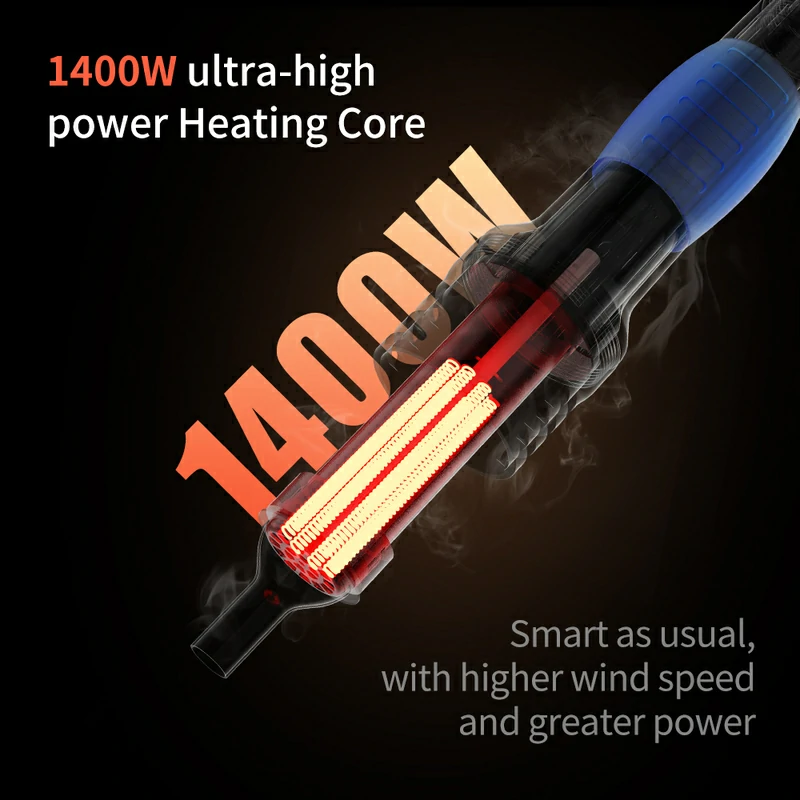

• 1400W peak power of heating core, heating up rapidly

• Smart as usual, with higher wind speed and greater power

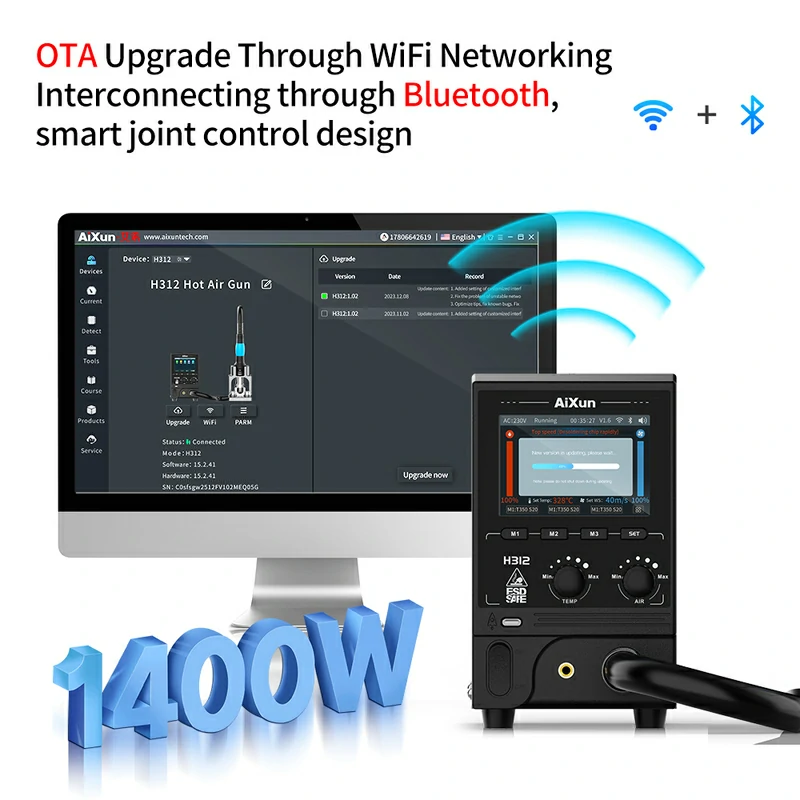

• WiFi networking OTA upgrade, interconnecting through bluetooth

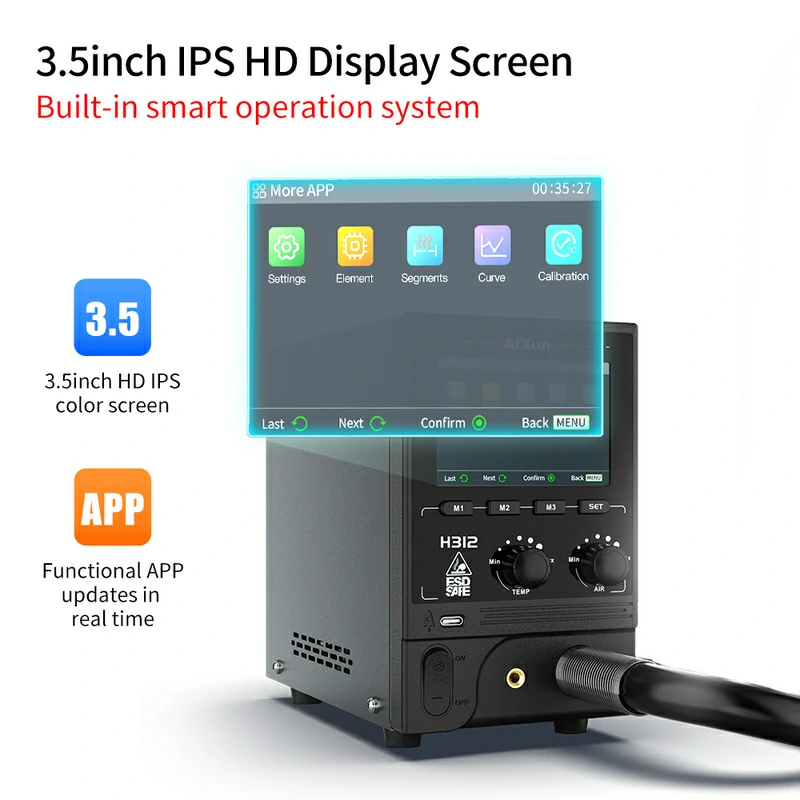

• 3.5inch IPS HD display screen, built-in smart operation system

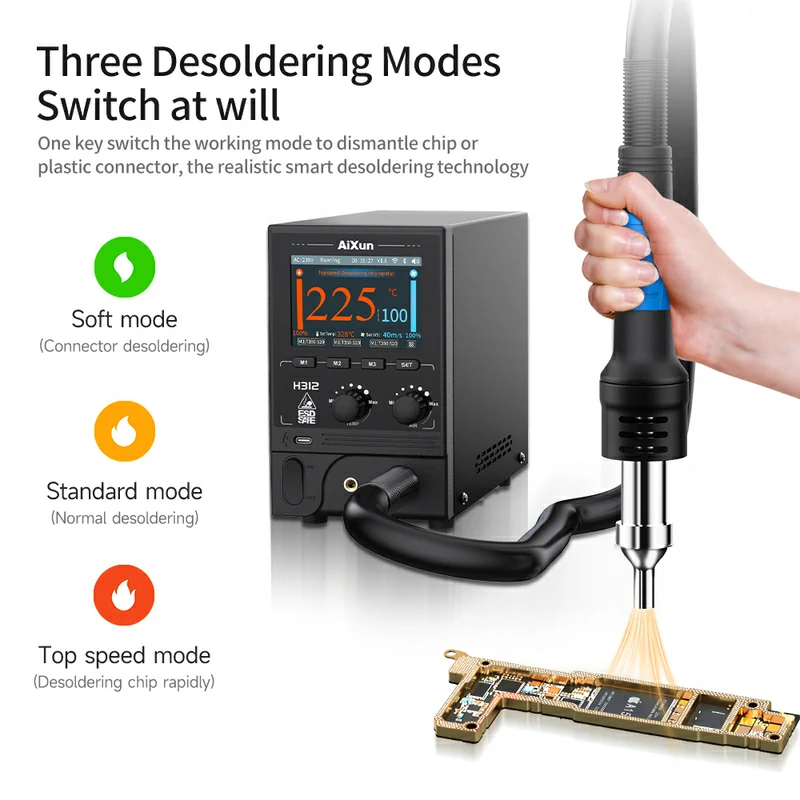

• One key switch among three desoldering modes, cold air mode and force working mode

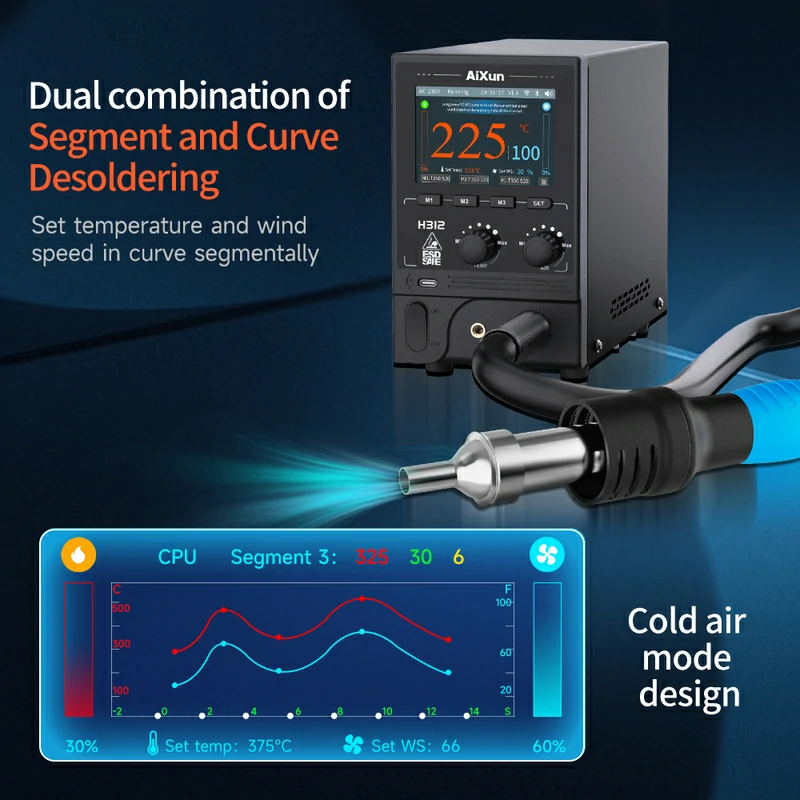

• Dual combination of segment and curve desoldering

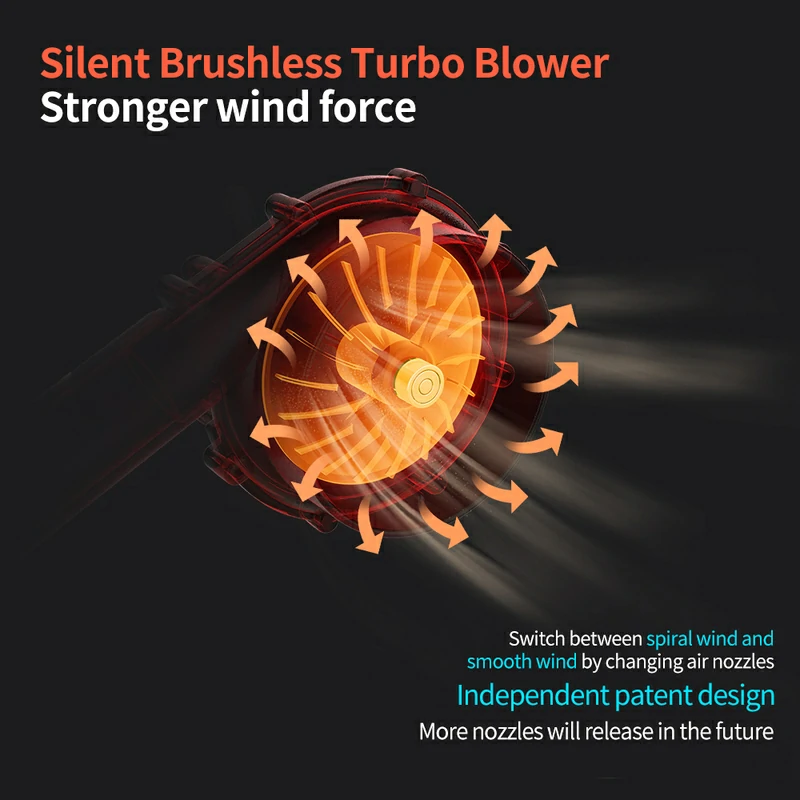

• Mute brushless fan,strong but quiet wind, 1400W ultra-high power, extremely fast heating

• Built-in with desoldering parameters of all kinds of chips,update data on Cloud in real time. Users can recall, add,revise and save data to build their own exclusive Cloud database

Manual Book
Video Instruction
Description

Specifications:

Product Name

Smart Hot Air Rework Station

Brand

AiXun

Model

H312

Display screen

3.5inch IPS

Input voltage

220V~50Hz

Peak power

1400W

Communication

Type-C/Bluetooth/WIFI

Rated power

1200W

Dimensions

220*100*170mm

Air flow

10-50m/s

Temp range

100-500°C

Blowing type

Smooth wind/Spiral wind

Air flow gear

1%-100%



Features:

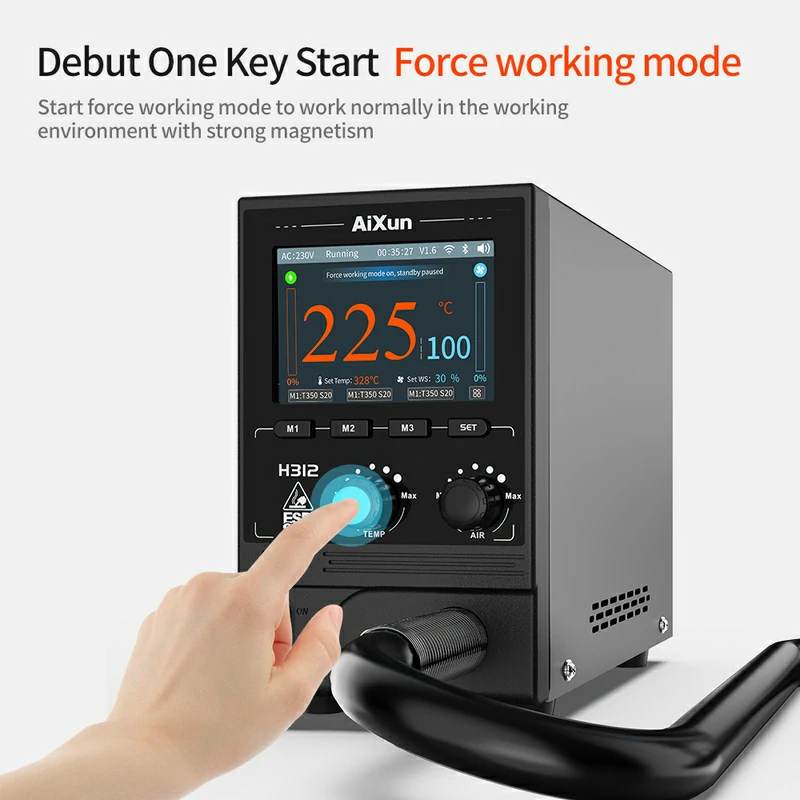

AiXun H312 smart hot air rework station redefine hot air gun with internet technology. The 1400W ultra-high power heating core ensures higher wind speed and greater power during soldering. Debut one key start force working mode provides assistant to the station to work normally in the working environment with strong magnetism. It supports segment and curve desoldering with built in technical desoldering parameters which can be revised, recalled, saved and added by users so as to build the exclusive cloud database. The 3.5inch IPS HD display screen is benefit for observing temperature changes. It owns multiple advantages includes WiFi networking OTA upgrade, bluetooth interconnecting, silent brushless turbo blower which enables stronger wind force. Besides, it is designed with three working modes: standard mode, soft mode (connector desoldering) and top speed mode (fast chip desoldering), which can be switched quickly through the shortcut channel buttons, help beginners fix chip and motherboard easily.

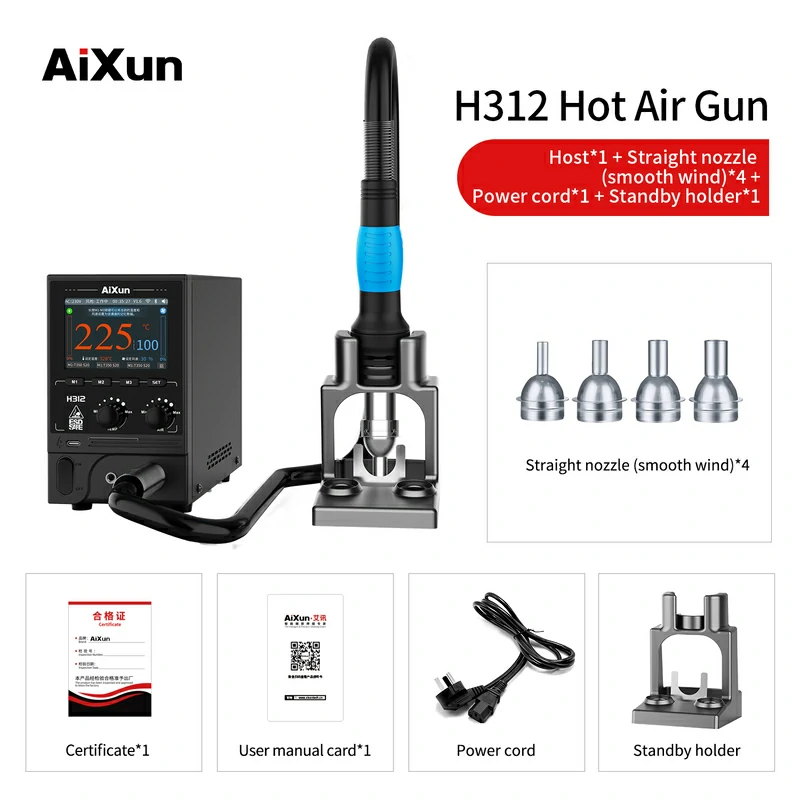

List of Packing:

1 x H312 host

4 x Air nozzle (smooth wind)

1 x Power cord

1 x Standby holder

1 x Certificate card

1 x User manual card



Packing Details:

1pc/box, 4pcs/carton

Box dimension:

Carton dimension:
