Intelligent DC Power Supply

P2408S Intelligent Regulated 24 Volt DC Power Supply for Mobile Repair 1

P2408S Intelligent Regulated 24 Volt DC Power Supply for Mobile Repair 2

P2408S Intelligent Regulated 24 Volt DC Power Supply for Mobile Repair 3

P2408S Intelligent Regulated 24 Volt DC Power Supply for Mobile Repair 4

P2408S Intelligent Regulated 24 Volt DC Power Supply for Mobile Repair 4

P2408S Intelligent Regulated 24 Volt DC Power Supply for Mobile Repair 5

P2408S Intelligent Regulated 24 Volt DC Power Supply for Mobile Repair 6

P2408S Intelligent Regulated 24 Volt DC Power Supply for Mobile Repair 7
P2408S Intelligent Regulated 24 Volt DC Power Supply for Mobile Repair

Market Price: US $100/Set

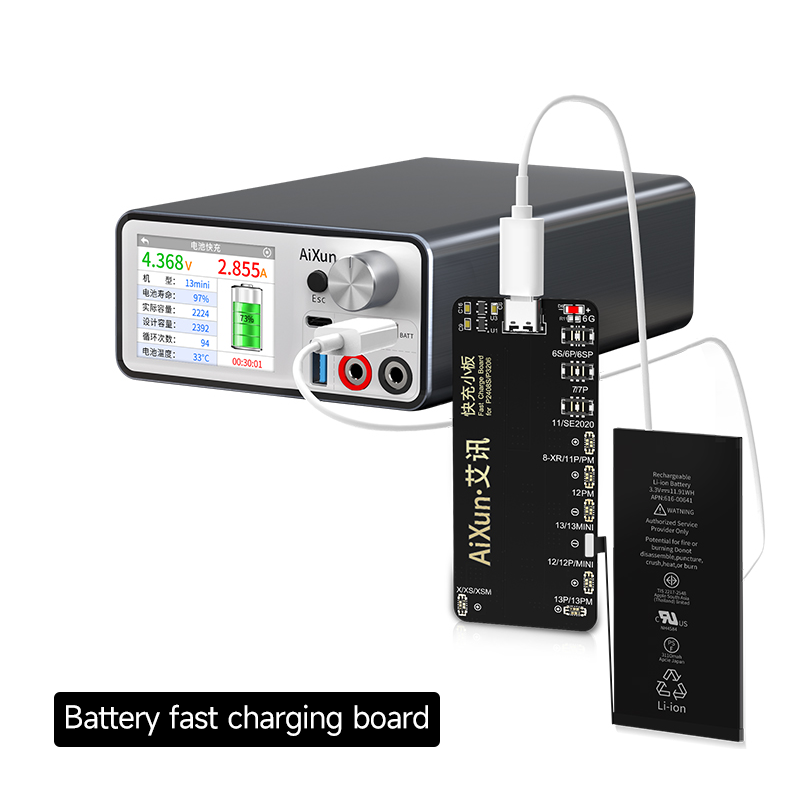

• Support battery charge and discharge round cycle test and calibration for 11-13 full series, built-in APP for battery calibration

• Support battery capacity expansion, one key expand to full capacity, prolong the service life of battery

• Precise control of output voltage, the detected value can be precised into 1mA

• Adjustable 24V/8A DC power supply, support burn-in detection and repair

• High compatibility, support PD and QC 3.0 protocols, meet fast charging needs of multi devices

• Pointer, curve and digital display, three types help monitor comprehensively

• Support iOS 6-13 series battery PD fast charging protocols, the current can reach to 3A+

• One key power on, provide short circuit protection

Manual Book
Video Instruction
Description

Specifications:

Model

P2408S

Product Name

P2408S Intelligent Regulated Power Supply

Input Voltage

220V / 110V

Output Voltage

0-24V

Current Range

0-8A

Fast Charge

PD, QC 3.0

Input Frequency

50Hz

Dimension

175*110*52mm



Features:

AiXun P2408S intelligent regulated power supply is upgraded with battery fast charging, constant current output, short circuit automatic protection and new operation interface functions. It’s a comprehensive adjustable DC power supply that integrated multi functions. For example, the built-in PD and QC 3.0 protocols enable Apple and Android phone fast charge detection; detecting the fast charging voltage and current in real time, built-in iP6-13 series battery protocol which enables one key power on; smart burn-in and short circuit detection & repair. It's a necessary multifunctional tool in mobile repair and phone maintenance work.

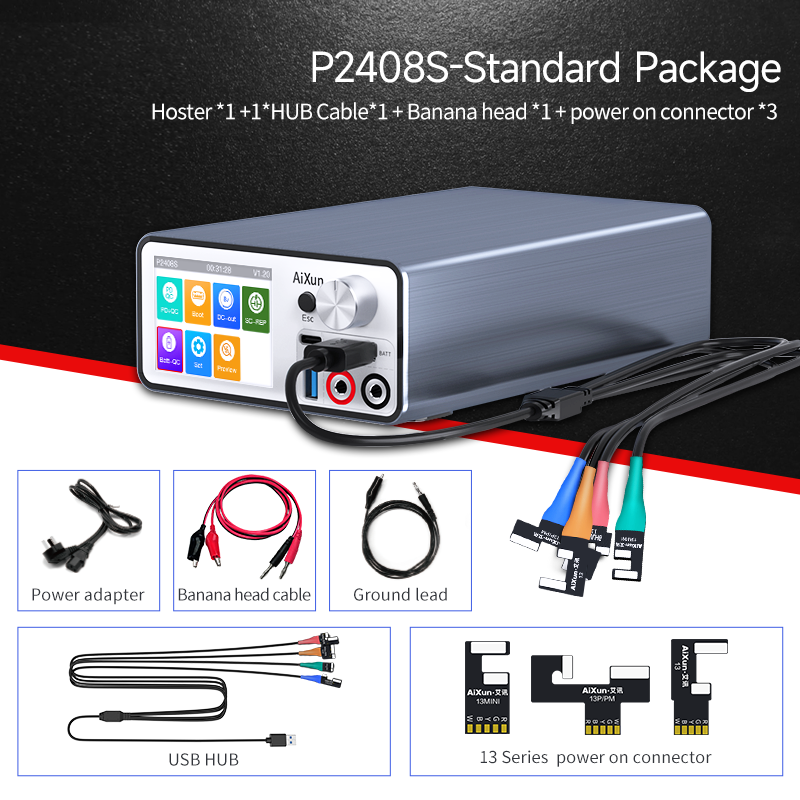

List of Packing:

1x Main station of AiXun P2408S

1x USB HUB cable

1x Banana head cable

4x Power on connector (X-11Pro Max)



Packing Details:

1pc/box, 6boxes/carton

Box dimension: 240*203*60mm

Carton dimension: 416*250*195mm
